Email UsDescription
Features Main Breaker Convertible and Main Lug Not Convertible; Invertible for Bottom Feed Application; Combination Head Screw on the Neutrals, Ground, Trim, Upper Pan and Bond Screw Provide Installation Flexibility; Single Side Inboard Neutral on Single/Above Circuits; A Rigid, Sturdy Base Pan Provides the Ruggedness Required for the Most Harsh Application; The Outdoor Enclosure has a Slide Hinge Door for the Easiest Installation and Can be Removed by Backing Out Only One Screw; Mounting Tabs on the Trim Hold it in Place on the Load Center, Freeing up Both Hands to Drive the Trim Screws; The Pre-Positioned Bond Screw Eliminates Bond Strap/Screw Assemblies and Reduces the Risk of Losing Components in the Field; Value Pack is a Mix of Branch Breakers Provided with the Load Center; Insta-Wire Neutrals and Grounds; 10 Year Warranty
240 VAC 3-Phase 3-Wire, 120/208/240 VAC 3-Phase 4-Wire

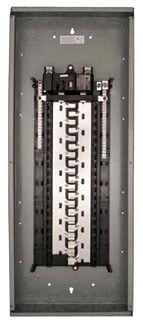

Main Lug Loadcenter; Type 240 VAC 3-Phase 3 Wire, 120/208/240 VAC 3-Phase 4-Wire; Voltage Rating 240 VAC 3-Phase 3-Wire, 120/208/240 VAC 3-Phase 4-Wire; Current Rating 225 Ampere; Circuit Configuration 3-Phase 3-Wire, 3-Phase 4-Wire; Maximum Number of Circuits 60; Maximum Number of Spaces (42) 1 Inch; Interrupting Rating 100 Kiloampere; Neutral Type Bonded, Groundable; Bus Material Aluminum; Feed Location Bottom; Enclosure Type NEMA 1, Indoor; Cover Type Flush/Surface; Enclosure Size Designation 1; Size 14-1/4 Inch W x 3-7/8 Inch D x 36 Inch H; Approval UL
Specs
- Condition: Brand New
- Brand: Siemens
- Item ID: S4260L3225
- Warranty: 10 Year Limited
- Manufacturer: Siemens
- Product Type: Main Lug Loadcenter
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: S4260L3225
- Supplies Depot Part Number: 401179
