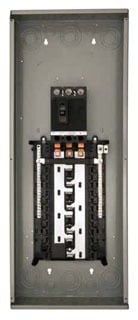

SKU: S3030B3100 Siemens S3030B3100 100A 120/208V 3 Phase MCB Load Center


Siemens S3030B3100 100A 120/208V 3 Phase MCB Load Center

Need Help Matching Up a Part?

Speak to our friendly customer service.



Purchase Siemens S3030B3100 100A 120/208V 3 Phase MCB Load Center
  • Siemens S3030B3100 100A 120/208V 3 Phase MCB Load Center SKU: S3030B3100

  • Genuine Siemens factory OEM product Read More
  • $442.95 / ea

    Out of Stock. Please contact us for availability.
    Out of Stock. Please contact us for availability.

Description

This Siemens S3030B3100 100A 120/208V 3 Phase MCB Load Center is brand new in the original factory packaging. Supplies Depot has free shipping on orders over $99. We have plumbing, heating, electrical supplies and more in stock at our warehouse at nationally competitive prices. In stock items ship same day if ordered Monday thru Friday 8am to 5pm EST.

Features Main Breaker Convertible and Main Lug Not Convertible; Invertible for Bottom Feed Application; Combination Head Screw on the Neutrals, Ground, Trim, Upper Pan and Bond Screw Provide Installation Flexibility; Single Side Inboard Neutral on Single/Above Circuits; A Rigid, Sturdy Base Pan Provides the Ruggedness Required for the Most Harsh Application; The Outdoor Enclosure has a Slide Hinge Door for the Easiest Installation and Can be Removed by Backing Out Only One Screw; Mounting Tabs on the Trim Hold it in Place on the Load Center, Freeing up Both Hands to Drive the Trim Screws; The Pre-Positioned Bond Screw Eliminates Bond Strap/Screw Assemblies and Reduces the Risk of Losing Components in the Field; Value Pack is a Mix of Branch Breakers Provided with the Load Center; Insta-Wire Neutrals and Grounds; 10 Year Warranty

240 VAC 3-Phase 3-Wire, 120/208/240 VAC 3-Phase 4-Wire

Main Breaker Loadcenter; Type 240 VAC 3-Phase 3 Wire, 120/208/240 VAC 3-Phase 4-Wire; Voltage Rating 240 VAC 3-Phase 3-Wire, 120/208/240 VAC 3-Phase 4-Wire; Current Rating 100 Ampere; Circuit Configuration 3-Phase 3-Wire, 3-Phase 4-Wire; Maximum Number of Circuits 30; Maximum Number of Spaces (30) 1 Inch; Interrupting Rating 10 Kiloampere; Neutral Type Bonded, Groundable; Bus Material Aluminum; Feed Location Back; Enclosure Type NEMA 1, Indoor; Cover Type Flush/Surface; Enclosure Size Designation 1; Size 14-1/4 Inch W x 3-7/8 Inch D x 30 Inch H; Approval UL

Specs

  • Condition: Brand New
  • Brand: Siemens
  • Item ID: S3030B3100
  • Warranty: 10 Year Limited
  • Manufacturer: Siemens
  • Product Type: Main Breaker Loadcenter

Document Downloads

Additional Part Number Information:

  • Equivalent Part Number: S3030B3100
  • Supplies Depot Part Number: 464513
