Email UsDescription

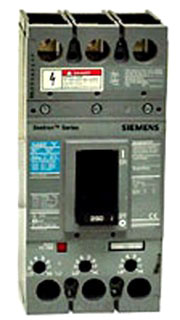

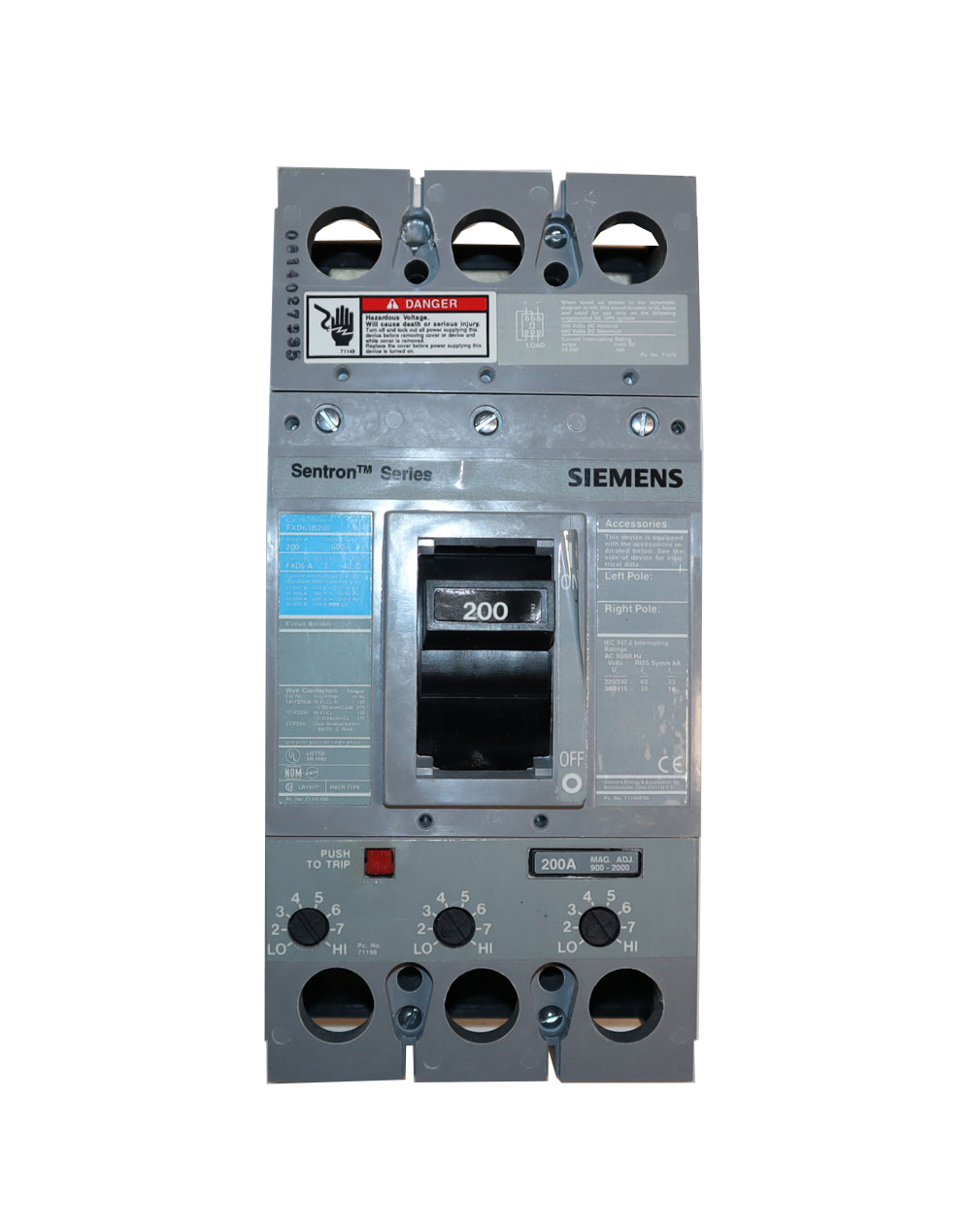

Circuit Breakers are UL Listed for Reverse Feed Applications; UL Rated for Use on 500 Volt DC Ungrounded UPS Systems; HACR Rated; RoHS Compliant 600 VAC 50/60 Hz, 500 VDC, 200 A, 22/18 kA, 3-Pole, FD-Frame, Thermal Magnetic, Non-Interchangeable Trip, Molded Case Circuit Breaker Applicable Standard IEC 947-2
Molded Case Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip; Frame Type FD; Voltage Rating 600 Volt AC at 50/60 Hertz, 500 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 500 Volt; Current Rating 200 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 22 Kiloamp at 600 Volt AC, 18 Kiloamp at 500 Volt DC; Size 4.5 Inch Width x 4 Inch Depth x 9.5 Inch Height; Approval UL 489, CSA C22.2, CE, Federal Specification Class 20A; RoHS Compliant; Applicable Standard IEC 947-2
Specs
- Condition: Brand New
- Brand: Siemens
- Item ID: FXD63B200
- Manufacturer: Siemens
- Product Type: Molded Case Circuit Breaker
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FXD63B200
- Supplies Depot Part Number: 79747
