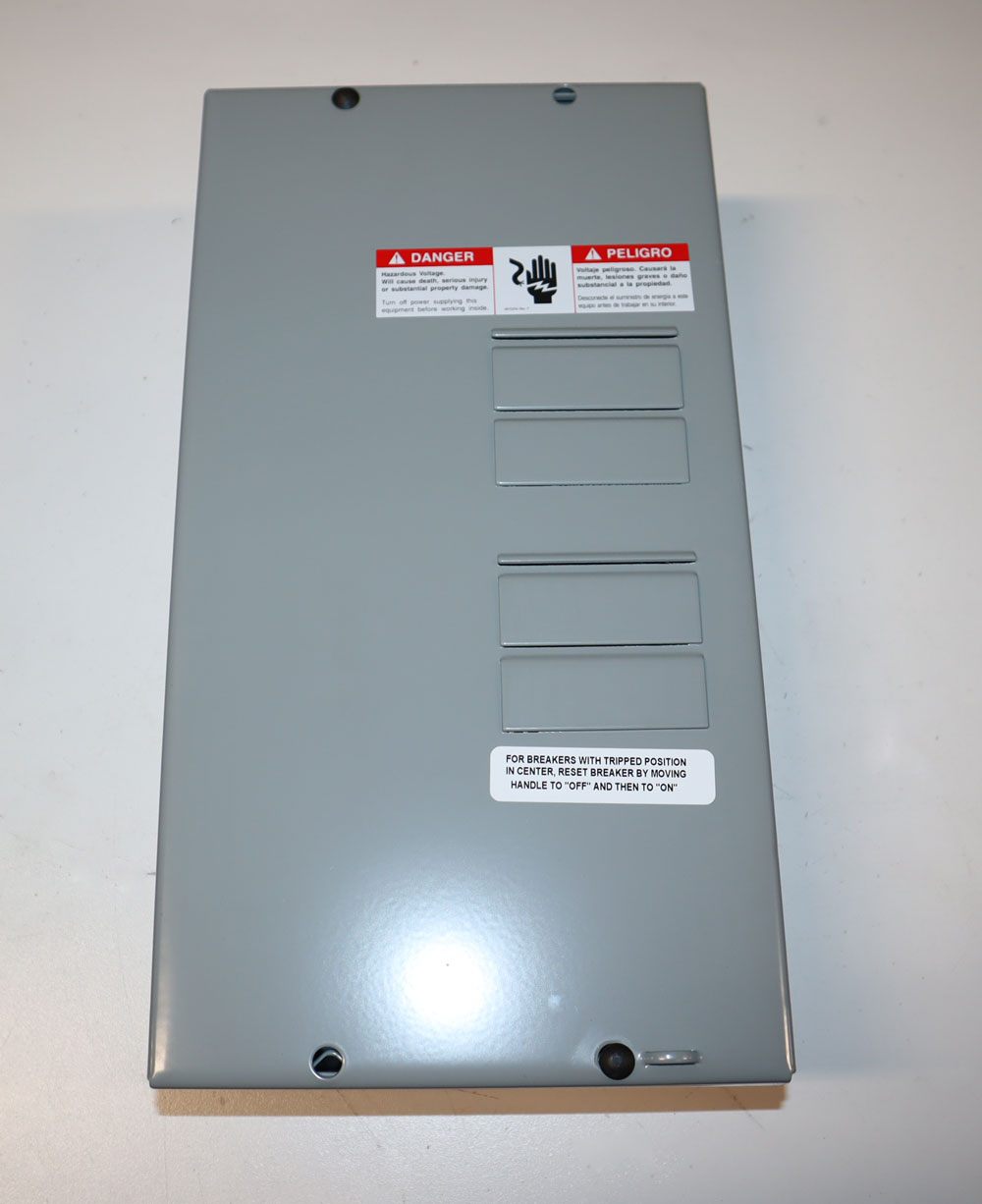

Supplies Depot: Siemens E0408ML1125S 8-Circuit NEMA1 Load Center

Description

This Siemens E0408ML1125S 8-Circuit NEMA1 Load Center is brand new in the original factory packaging. Supplies Depot has free shipping on orders over $99. We have plumbing, heating, electrical supplies and more in stock at our warehouse at nationally competitive prices. In stock items ship same day if ordered Monday thru Friday 8am to 5pm EST.

EQ Load Centers with Main Lugs Feature a Combination Trim Box in One Package; Interiors Offer Removal in Seconds; One Piece Bus Bar Construction Designed for Use Only with Circuit Breakers; UL Listed for 60/75 Deg C Conductors; Positive Load Side Circuit Breaker Hook Rails; Outdoor Type 3R Devices Features HS Type Hub

120/240 VAC, 125 A, 100 kA, 1-Phase, 3-Wire, 8-Circuit, 6-Space, Surface, Aluminum Bus, Main Lug Load Center

Includes Combination Trim Box

Main Lug Loadcenter; Type Main Lug; Voltage Rating 120/240 VAC; Current Rating 125 Ampere; Circuit Configuration 1-Phase 3-Wire; Maximum Number of Circuits 8; Maximum Number of Spaces (4) 1-Pole/(2) 2-Pole QP; Main Breaker Type QP; Breaker Mounting Plug-In; Interrupting Rating 100 Kiloampere; Bus Material Aluminum; Enclosure Type NEMA 1, Indoor; Cover Type Surface; Enclosure Size Designation 1; Size 6-5/8 Inch W x 3-1/2 Inch D x 12-5/8 Inch H; Approval UL; Includes Combination Trim Box

Specs

Condition: Brand New
Brand: Siemens
Item ID: E0408ML1125S
Manufacturer: Siemens
Product Type: Main Lug Loadcenter

Document Downloads

Additional Part Number Information:

Equivalent Part Number: E0408ML1125S
Supplies Depot Part Number: 586405
