Description

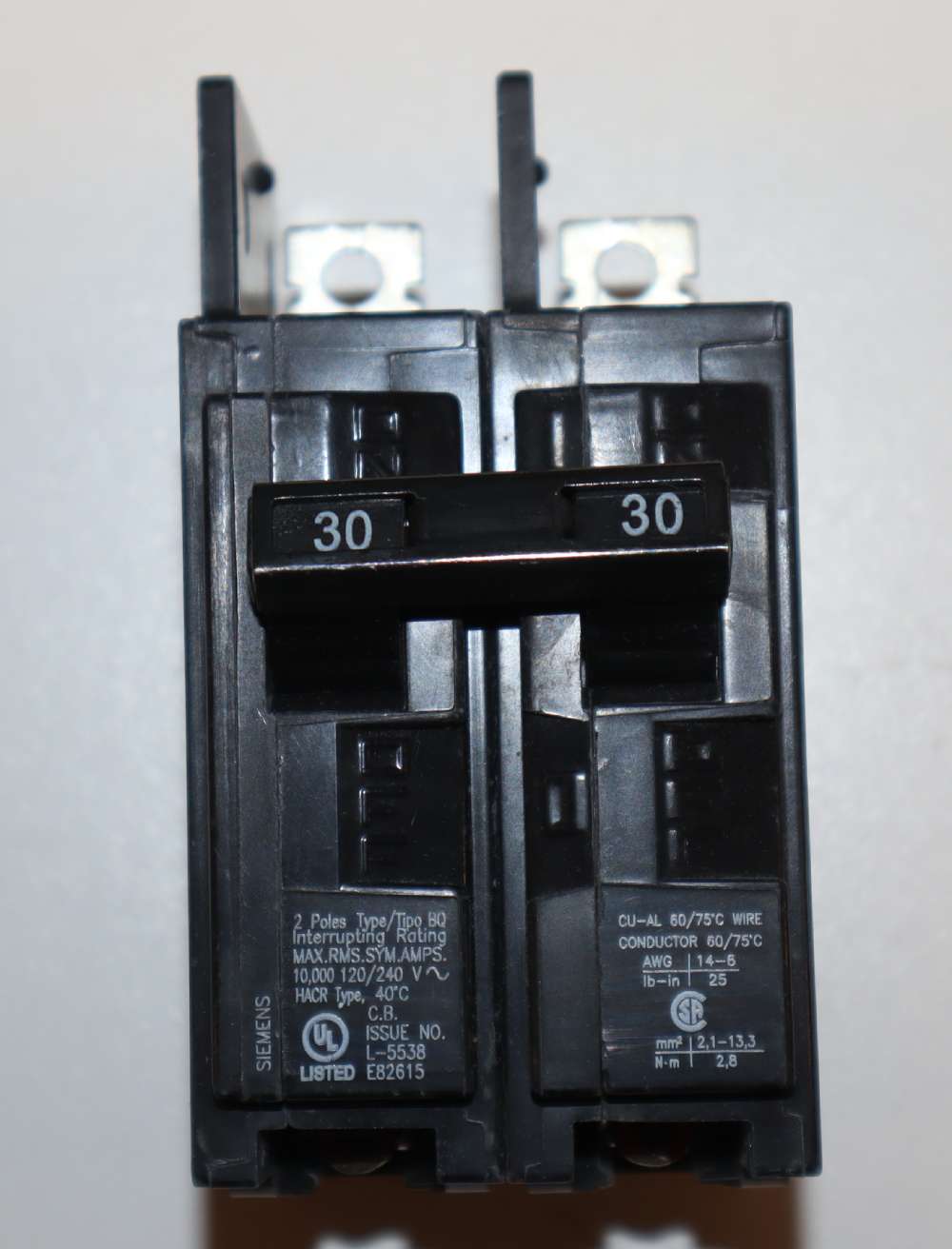

Supplied with Load Side Lug; All Standard Circuit Breakers are Calibrated for 40 Deg C Maximum Ambient Application 120/240 VAC at 50/60 Hz, 30 A, 10 kA, 2-Pole, BQ-Frame, Load Lug Terminal, Bolt-On Mount, Thermal and Fixed Magnetic Trip, Common Trip, Molded Case Circuit Breaker Frame Type BQ
Molded Case Circuit Breaker; Type Molded Case, Thermal and Fixed Magnetic, Common Trip; Number of Poles 2; Voltage Rating 120/240 VAC at 50/60 Hz (UL); Current Rating 30 Ampere at 40 Deg C; Interrupting Rating 10 Kiloampere at 120/240 VAC Symmetrical (UL); Terminal Type Load Lug; Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum); Used On P1/P2/P3/P4/P5 Panelboard; Size 2 Inch W x 3 Inch D x 3-3/4 Inch H; Approval UL 489, CSA C22.2; Frame Type BQ
Specs
- Condition: Brand New
- Brand: Siemens
- Item ID: BQ2B030
- Warranty: 18 Months
- Manufacturer: Siemens
- Product Type: Molded Case Circuit Breaker
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: BQ2B030
- Supplies Depot Part Number: 67932
