Email UsDescription
External Screw Pressure Plate Back and Side Wired Accepts #14 to #10 AWG Copper or Copper Clad Conductors; Heavy Gauge One Piece Copper Alloy Contact Arm Virtually Eliminates Contact Bounce; Cam Controls Fast Make and Positive Break to Minimize Arcing; Heavy Duty Bumper Pads for Quiet Operation; High Strength Thermoplastic Polycarbonate Toggle; Back Body Made of Glass Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Oversized Silver Alloy Contacts for Long Life and Better Heat Dissipation; Grounding Terminal is Standard; Shallow Design for Ease of Installation; Strap Nickel Plated Steel with Integral Ground; Auto Ground Clip Assures Positive Ground

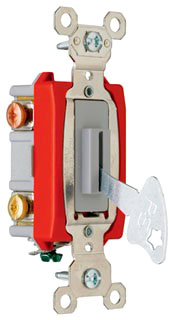

120/277 VAC, 20 A, Gray, Glass Reinforced Nylon Body, Thermoplastic Polycarbonate Toggle, Back/Side Wiring, 3-Way, Lock Key, Extra Heavy Duty, AC Toggle Switch
Applicable Standard NEMA WD-1/WD-6
Toggle Switch; Type Keyed Locking; Current Rating 20 Ampere; Voltage Rating 120/277 VAC; Power Rating 1 HP at 120 VAC, 2 HP at 240 VAC; Operation Type 3-Way; Material Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Strap; Color Gray; Wiring Back, Side; Size 1.32 Inch W x 1.073 Inch D x 3.281 Inch H; Wall Plate Included No; Application Industrial; Approval UL 498, FSUL WS896, CSA C22.2; Applicable Standard NEMA WD-1/WD-6
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: PS20AC3L
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Toggle Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: PS20AC3L
- Supplies Depot Part Number: 278173
