Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire; Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity; Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock; Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces; Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site; Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal; Visible Stamped NEMA Configuration and Device Rating; New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention; Integral Flexible Rubber Cord Grommet Conforms to and Seals Around So Cord to Provide Protection from Oils, Water or Chips Entering Wiring Chamber
Applicable Standard NEMA WD-1; Enclosure IP20; Blade Material Tin Plated Stresscon; Operating Temperature -40 to 75 Deg C

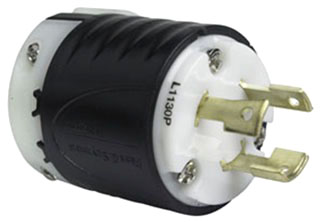

Locking Device Plug; Type Polarized; Configuration L11-30P; Voltage Rating 250 VAC 3-Phase; Current Rating 30 Ampere; Number of Poles 3; Number of Wires 3; Ground Type Non-Grounding; Material Nylon; Color Black, White; Cord Size 0.385 to 1.15 Inch; Approval UL 498, CSA, FSUL WC596; Applicable Standard NEMA WD-1; Enclosure IP20; Blade Material Tin Plated Stresscon; Operating Temperature -40 to 75 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: L1130P
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Locking Device Plug
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: L1130P
- Supplies Depot Part Number: 29187
