Email UsDescription

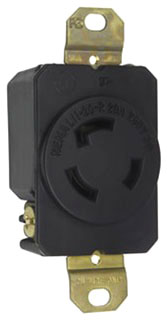

Compact, Impact Resistant Nylon Face and Body are Ultrasonically Welded Together for Unrivaled Strength; Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices; One Piece, High-Grade Brass Contacts Offer Excellent Conductivity and Heat-Rise Resistance; Clearly Marked NEMA Configuration, Rating and Third-Party Listing on Each Unit's Face; Single-Piece, Solid Brass Mounting Strap is Free of Easily Loosened Rivets Found on Other Brands; Side and External Screw Pressure Plate Back Wire Capability; Accepts #14 to #10 AWG
Overall Dimension 1.61 Inch W x 1.19 Inch D x 3.28 Inch H; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 75 Deg C
Locking Device Receptacle; Type Single Locking; Constructional Feature Impact Resistant; Configuration L11-20R; Voltage Rating 250 VAC 3-Phase; Current Rating 20 Ampere; Number of Poles 3; Number of Wires 3; Ground Type Non-Grounding; Face Outer Diameter 1.545 Inch; Material Nylon; Wiring Back; Mounting Strap; Approval UL 498, FSUL WC596; Overall Dimension 1.61 Inch W x 1.19 Inch D x 3.28 Inch H; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 75 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: L1120R
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Locking Device Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: L1120R
- Supplies Depot Part Number: 29182
