Corrosion Resistant, Plated Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; 0.032 Inch Thick Brass Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; Impact Resistant Nylon Face and Thermoplastic Back Body; Accepts 14 to 10 AWG Solid or Stranded Copper or Copper-Clad Wire; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto-Ground Clip Assures Positive Ground

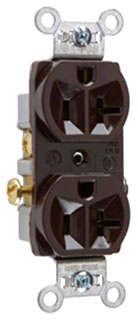

125 VAC, 20 A, NEMA 5-20R, 2-Pole, 3-Wire, Brown, Thermoplastic Back Body, Nylon Face, Corrosion Resistant, Side Wiring, Commercial/Specification Grade, Grounding, Duplex, Straight Blade Receptacle
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.322 Inch W x 0.78 Inch D x 3.281 Inch H; Temperature Rating -40 to 50 Deg C
Straight Blade Receptacle; Type Duplex; Constructional Feature Corrosion Resistant, Impact Resistant; Configuration 5-20R; Voltage Rating 125 VAC; Current Rating 20 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Material Thermoplastic (Back Body), Nylon (Face); Color Brown; Wiring Side; Grade Commercial; Approval UL 498, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.322 Inch W x 0.78 Inch D x 3.281 Inch H; Temperature Rating -40 to 50 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: CR20
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Straight Blade Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: CR20
- Supplies Depot Part Number: 29397
