High Horsepower Rating of 20 HP; Compact Design; Gull-Wing Shaped Brass Terminal Pressure Clamps; Two Point Contact Arms; UL508 and CULUS Listing of Individual Device and Assembled Device Within Enclosure; Heavy Duty Zinc Plated Steel Strap; Two Brass Rivets Secure Strap to Housing; External Screw Pressure Plate Back and Side Wire Terminal Screws Unstacked for Use with Ring Terminals; Oversized Silver Alloy Contacts; 2-1/2 Inch Knockouts on Back and 2-1/23/4 Inch Knockouts on Top and Bottom (7812P, 7813P, 7806P); 2-1/2 Inch Knockouts on Bottom and Back (7832 and 7833)

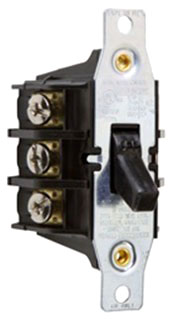

1.825 inch x 1.753 inch x 2.375 inch, 30 A, 600 VAC, 3-Phase, 3-Pole, Glass Reinforced Thermoplastic, Manual Controller Switch
Applicable Standard NEMA WD-1/WD-6
Type 3-Phase; Current Rating 30 Ampere; Voltage Rating 600 VAC; Operation Type Three Pole; HP at 120 V 3 HP; HP at 240 V 7.5 HP; HP at 480 V 10 HP; HP at 600 V 20 HP; Material Glass Reinforced Thermoplastic; Size 1.825 Inch W x 1.753 Inch D x 2.375 Inch H; Approval UL 508, UL (Canada and US), CSA C22.23; Applicable Standard NEMA WD-1/WD-6
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 7803
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Manual Controller Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 7803
- Supplies Depot Part Number: 29429
