Email UsDescription

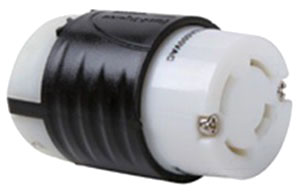

Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire; Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity; Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock; Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces; Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site; Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal; Visible Stamped NEMA Configuration and Device Rating; New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention; Integral Flexible Rubber Cord Grommet Conforms to and Seals Around So Cord to Provide Protection from Oils, Water or Chips Entering Wiring Chamber
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 2.2 Inch Dia x 3.33 Inch L; Contact Material Brass; Grade Industrial Specification; Enclosure IP20; Operating Temperature -40 to 70 Deg C
Locking Device Connector; Type Polarized; Constructional Feature Impact Resistant; Configuration Non-NEMA Locking; Voltage Rating 250/600 VAC Star 3-Phase; Current Rating 10 Ampere at 600 V, 20 Ampere at 250 V; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material Nylon; Color Yellow; Cord Size 0.333 to 1.06 Inch; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 2.2 Inch Dia x 3.33 Inch L; Contact Material Brass; Grade Industrial Specification; Enclosure IP20; Operating Temperature -40 to 70 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 7413G
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Locking Device Connector
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 7413G
- Supplies Depot Part Number: 283456
