Corrosion-Resistant, Plated and Tabbed Steel Strap Locked in to Face and Back Body to Resist Pulling Away from Face/Body Assembly; 0;032 Inch Thick, Brass, Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; Impact-Resistant Nylon Face; 8 Hole Internal Screw-Pressure-Plate Back Wire Terminals Accept #10 to #14 AWG Solid or Stranded Copper or Copper-Clad Conductors; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto-Ground Clip Assures Positive Ground
Applicable Standard NEMA WD-1/WD-6; Material PVC (Back Body), Nylon (Face); Operating Temperature -40 to 60 Deg C; Application Hard Use Specification Grade

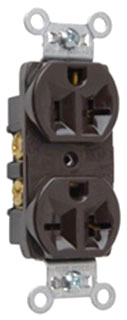

Combination Duplex Receptacle; Device 1 125 VAC 20 Ampere 2-Pole 3-Wire Straight Blade, 5-20R; Device 2 250 VAC 20 Ampere 2-Pole 3-Wire Straight Blade, 6-15R; Color Brown; Wiring Side; Approval UL 498, FSUL WC596; Applicable Standard NEMA WD-1/WD-6; Material PVC (Back Body), Nylon (Face); Operating Temperature -40 to 60 Deg C; Application Hard Use Specification Grade
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 5890
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Combination Duplex Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 5890
- Supplies Depot Part Number: 29299
