Corrosion Resistant, Plated Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; 0.032 Inch Thick Brass Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; 8 Hole Internal Screw Pressure Plate Back Wire Terminals Accept 10 to 14 AWG Solid or Stranded Copper or Copper Clad Conductors; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto Ground Clip Assures Positive Ground
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.322 Inch W x 0.78 Inch D x 3.281 Inch H; Temperature Rating -40 to 60 Deg C

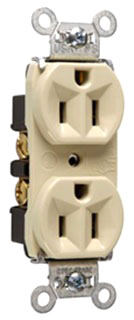

Straight Blade Receptacle; Type Duplex, Extra Heavy-Duty; Constructional Feature Corrosion Resistant, Impact Resistant; Configuration 5-15R; Voltage Rating 125 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Material Nylon; Color Ivory; Wiring Back, Side; Grade Specification; Approval UL 498, FSUL WC596, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.322 Inch W x 0.78 Inch D x 3.281 Inch H; Temperature Rating -40 to 60 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 5262I
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Straight Blade Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 5262I
- Supplies Depot Part Number: 29140
