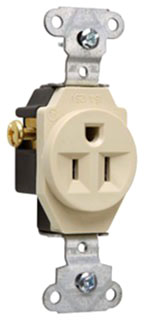

Supplies Depot: Pass & Seymour 5251I 15A 125V Single Receptacle

Description

This Pass & Seymour 5251I 15A 125V Single Receptacle is brand new in the original factory packaging. Supplies Depot has free shipping on orders over $99. We have plumbing, heating, electrical supplies and more in stock at our warehouse at nationally competitive prices. In stock items ship same day if ordered Monday thru Friday 8am to 5pm EST.

Auto-Ground Clip Assures Positive Ground; Two-Drive Screws Anchor Strap to Back Body and Face where Abrupt Removal Torque is Greatest; Heavy-Duty, Corrosion Resistant Zinc-Plated Steel Strap for Added Strength; Backed-Out Tri-Drive Steel Terminal Screws Internal Screw-Pressure-Plate Side Wire Capability; One Piece Brass, Triple Wire Power Contacts for Lasting Retention

125 V, 15 A, 5-15R, 2-Pole, 3-Wire, Ivory, Corrosion Resistant, Side Wiring, Grounding, Single, Straight Blade Receptacle

Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H

Straight Blade Receptacle; Type Single, Heavy-Duty; Constructional Feature Corrosion Resistant; Configuration 5-15R; Voltage Rating 125 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Color Ivory; Wiring Side; Grade Specification; Approval UL 498, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H

Specs

Condition: Brand New
Brand: Pass & Seymour
Item ID: 5251I
Warranty: 1 Year Limited
Manufacturer: Pass & Seymour
Product Type: Straight Blade Receptacle

Document Downloads

Additional Part Number Information:

Equivalent Part Number: 5251I
Supplies Depot Part Number: 29287

Product Video

Shipping & Returns

Shipping: CLICK HERE for our full Shipping Policy.
Return Policy: CLICK HERE for our full Return Policy.

Need Help Matching Up a Part?

Pass & Seymour 5251I 15A 125V Single Receptacle SKU: 0
