Revolutionary ECM Motor with SmartFlow Technology for Optimum CFM Output; Pick-A-Flow Airflow Selector Switch; Incorporates (1) 10 Watt Dimmable LED Chip Panel with 1 Watt LED Night Light for Warm, Energy Efficient Illumination; Low Profile 3-3/8 Inch Depth Fit Virtually Anywhere, Including 2 x 4 Constructionc; Energy Star Rated

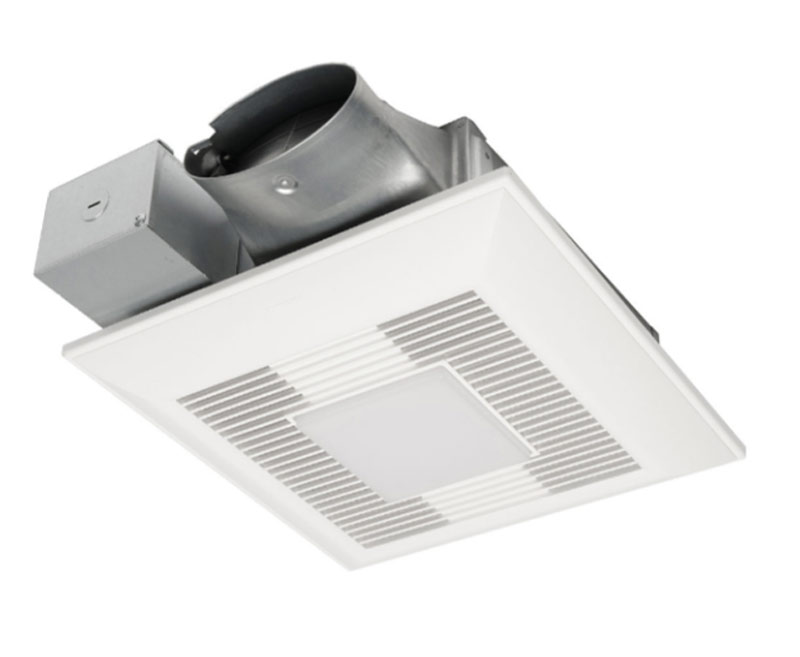

4 inch Oval Duct, 120 VAC, 0.39 A, 100 CFM, 0.9 Sones, 954 RPM, 10 W Dimmable LED, 26 Gauge Galvanized Steel, Ceiling or Wall, Ventilation Fan and Light
Motor Type ECM; Power Rating 12.4 Watt; Speed Rating 954 RPM; Energy Efficiency 8.2 CFM/Watt; Rated Life 50000 Hour; Application Residential, Light Commercial HIGH PERFORMANCE, CODE-COMPLIANT IAQ SOLUTIONS Well-managed indoor air quality is crucial to code compliance. Our installer-friendly ENERGY STAR ventilation solutions help you design beyond code without compromising interior aesthetics.
Ventilation Fan and Light; Type Ceiling or Wall; Voltage Rating 120 Volt AC 60 Hertz; Current Rating 0.39 Amp; Air Flow Rate 100 CFM; Sound Level 0.9 Sones; Lamp Type Dimmable LED; Lamp Wattage 10 Watt; Lamp Included Yes; Duct Shape Oval; Duct Size 4 Inch; Grill Shape Square; Grill Size 13 Inch Length x 13 Inch Width; Grill Material Poly Pro; Housing Shape Square; Housing Material 26 Gauge Galvanized Steel; Size 10-1/4 Inch Length x 10-1/4 Inch Width x 3-3/8 Inch Height; Approval UL (Canada and US), HVI, ASHRAE 62.2, LEED, California Title 24, Washington VIAQ; Motor Type ECM; Power Rating 12.4 Watt; Speed Rating 954 RPM; Energy Efficiency 8.2 CFM/Watt; Rated Life 50000 Hour; Application Residential, Light Commercial
Specs
- Condition: Brand New
- Brand: Panasonic
- Item ID: FV0510VSL1
- Manufacturer: Panasonic
- Product Type: Ventilation Fan and Light
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FV0510VSL1
- Supplies Depot Part Number: 1128878
