High Current Limiting for Low Peak Let-Thru Current; Unique Dimensions Prevent Replacement by Other Fuse Classes; Fiberglass Body Provides Dimensional Stability in Harsh Industrial Environments; Easy-to-Read Imprint Label for Quick Recognition and Replacement 600 VAC, 300 VDC, 30 A, Ferrule Terminal, Class J, Cylindrical, Rejection, Fast Acting, UL Power Fuse Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass Alloy; Mounting Clip; Application Capacitor, Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuits, Circuit Breaker, Lightning, Heating and General Load
Low Voltage UL Power Fuse; Type Class J; Characteristics Fast Acting; Voltage Rating 600 VAC, 300 VDC; Current Rating 30 Ampere; Interrupting Rating 200 Kiloampere (AC), 100 Kiloampere (DC); Terminal Type Ferrule; Diameter 13/16 Inch; Length 2-1/4 Inch; Approval UL 248/248-8, CSA C22.2; Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass Alloy; Mounting Clip; Application Capacitor, Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuits, Circuit Breaker, Lightning, Heating and General Load

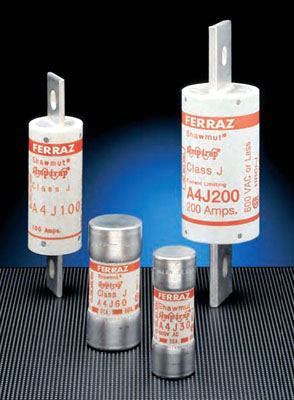

A4J Class J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Specs
- Condition: Brand New
- Brand: Mersen
- Item ID: A4J30
- Manufacturer: Mersen
- Product Type: Low Voltage UL Power Fuse
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: A4J30
- Supplies Depot Part Number: 58777
