Solid State Smartspot Visual Blown Fuse Indicator; Time-Delay for Motor Starting and Transformer Inrush; Extremely Current Limiting for Low Peak Let-Thru Current; Recommended for Arc Flash Energy Reduction; Small Footprint Requires Less Mounting Space and Allows Smaller, More Economical Fuse Blocks; Easy 2-to-1 Selectivity for Prevention of Nuisance Shutdowns; Unique Class J Dimensions Prevent Replacement Errors; High-Visibility Orange Label Gives Instant Brand Recognition; Metal-Embossed Date and Catalog Number for Easier Traceability and Lasting Identification; Fiberglass Body Provides Dimensional Stability in Harsh Industrial Environments; High-Grade Silica Filler Ensures Fast Arc Quenching

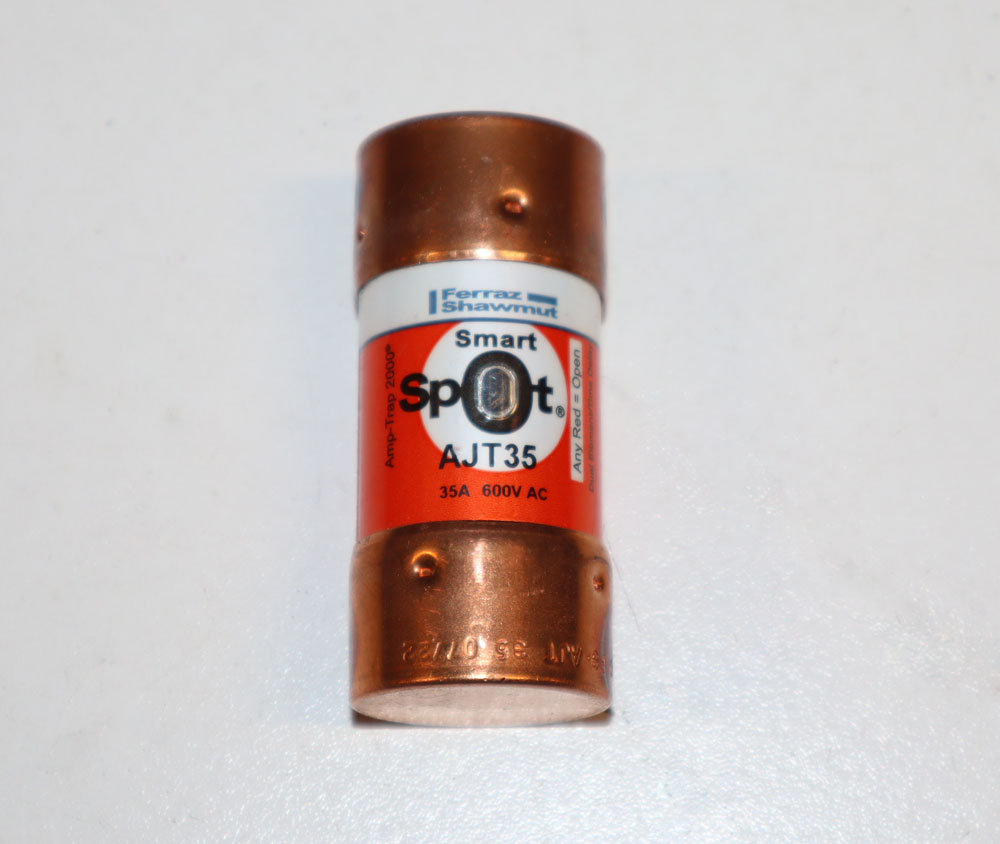

600 VAC, 500 VDC, 35 A, Ferrule Terminal, Class J, Cylindrical, Rejection, Time Delay, UL Power Fuse
Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass; Mounting Clip; Application Motor Circuits, Mains, Feeders, Branch Circuit, Lightning, Heating, General Load, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct, Loadcenters Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT's time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Low Voltage UL Power Fuse; Type Class J; Characteristics Time Delay; Voltage Rating 600 VAC, 500 VDC; Current Rating 35 Ampere; Interrupting Rating 200 Kiloampere (AC), 100 Kiloampere (DC); Terminal Type Ferrule; Diameter 1-1/16 Inch; Length 2-3/8 Inch; Approval UL 248/248-8, CSA C22.2; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass; Mounting Clip; Application Motor Circuits, Mains, Feeders, Branch Circuit, Lightning, Heating, General Load, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct, Loadcenters
Specs
- Condition: Brand New
- Brand: Mersen
- Item ID: AJT35
- Manufacturer: Mersen
- Product Type: Low Voltage UL Power Fuse
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: AJT35
- Supplies Depot Part Number: 97420
