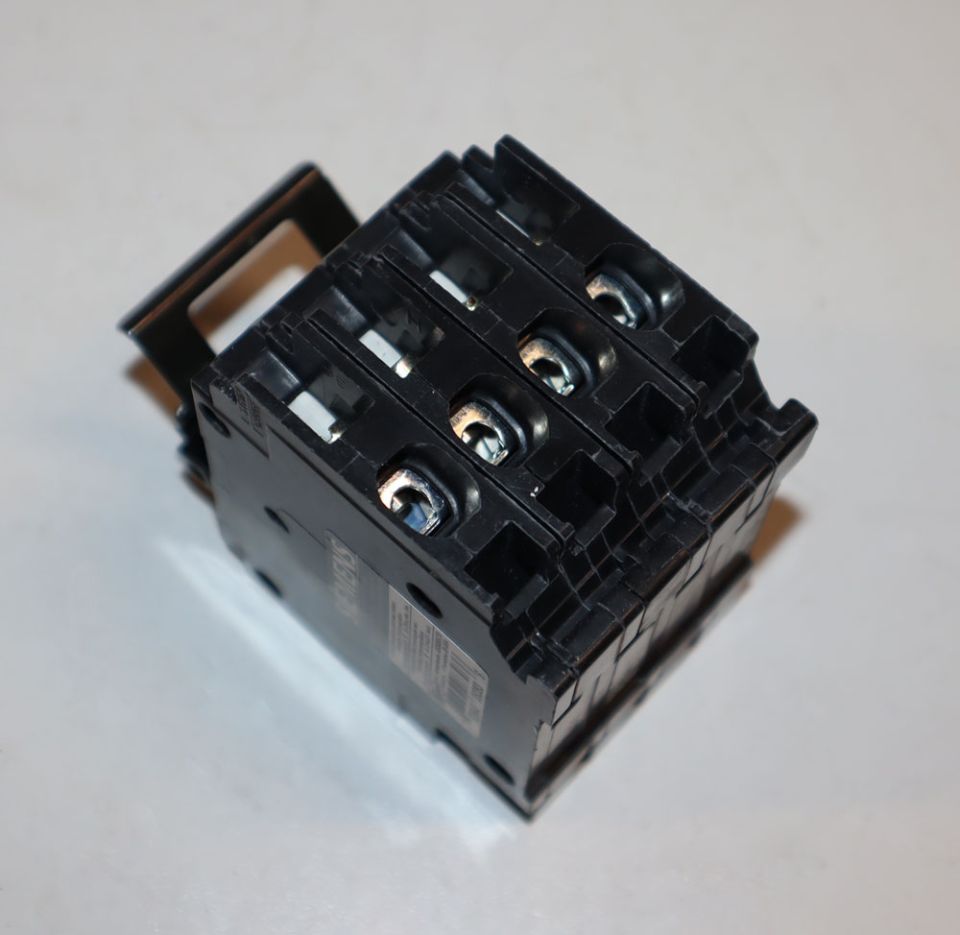

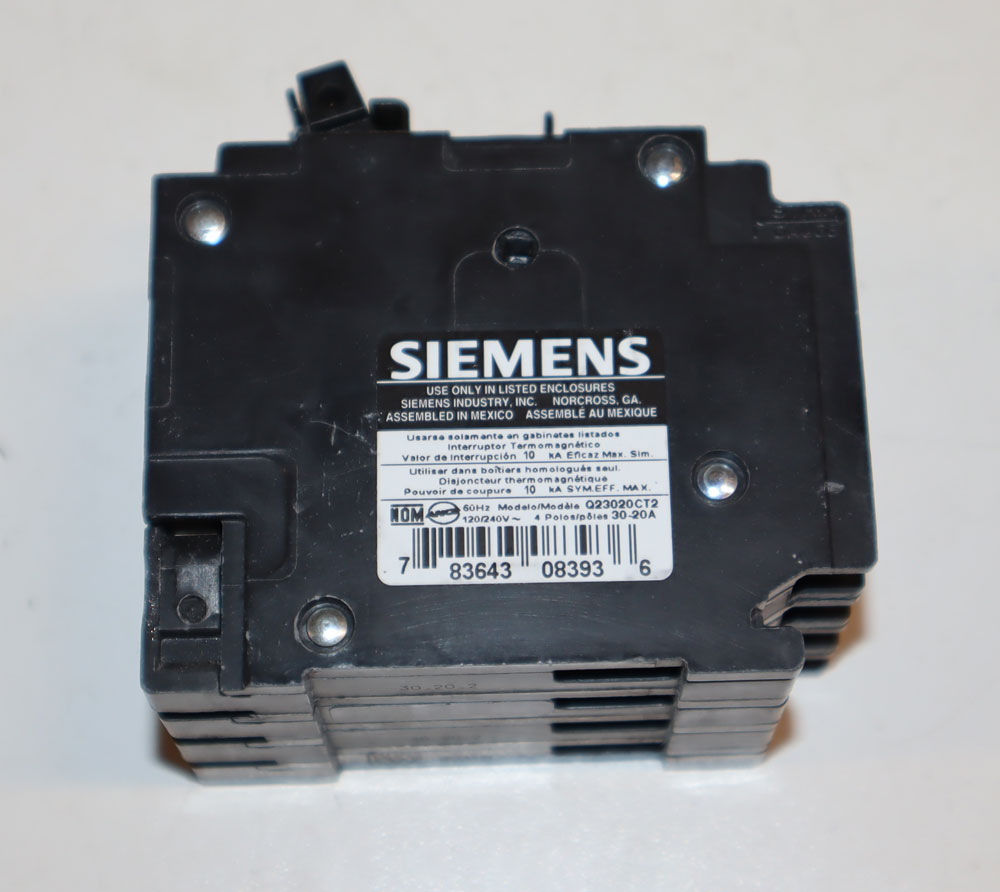

These Space Saver Quadplex Breakers Provide Two Sets of Common Trip, 2-Pole Breakers for 120/240 VAC Circuits and Require Two Panel Spaces; HACR Rated 120/240 VAC at 50/60 Hz, 20/30 A, 10 kA, 4-Pole, QT-Frame, Load Lug Terminal, Plug-In Mount, Thermal and Fixed Magnetic Trip, Quadplex, Common Trip, Molded Case Circuit Breaker Frame Type QT
Plug-In Circuit Breaker; Type Molded Case, Thermal and Fixed Magnetic Trip, Quadplex, Common Trip; Number of Poles (2) Inside, (2) Outside; Voltage Rating 120/240 VAC at 50/60 Hz; Current Rating 20 Ampere (Inside), 30 Ampere (Outside); Interrupting Rating 10 Kiloampere; Terminal Type Load Lug; Wire Size 14 to 6 AWG (Copper/Aluminum); Mounting Plug-In; Used On Loadcenter; Size 2 Inch W x 2.06 Inch D x 3.12 Inch H; Approval UL 489, CSA C22.2; Frame Type QT
Specs
- Condition: Brand New
- Brand: ITE
- Item ID: Q23020CT2
- Manufacturer: ITE
- Product Type: Plug-In Circuit Breaker
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: Q23020CT2
- Supplies Depot Part Number: 1114564
