With the Easy-to-Set "Yellow Dial", these Time Switches Allow for Basic Control of Electric Hot Water Heaters; These Time Switches Offer a Minimum ON/OFF Time of One Hour, are Available for 208-250 VAC Applications; With the Proven Reliability of Our Mechanical Line, these Time Switches Provide Dependable Electric Water Heater Control; Three Sets of ON/OFF Trippers; Enables Shifting Electricity Use into Off-Peak Hours to Reduce Energy Costs; Convenient External Override Switch; 1 Year Limited Warranty

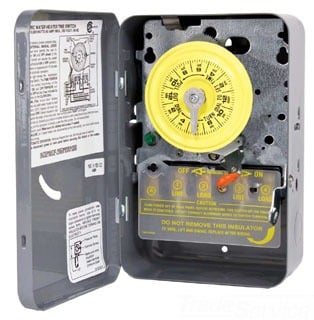

10000 W, 208 to 250 VAC, 40 A, DPST, Steel, Water Heater Time Switch
Knockout Size 1/2 Inch and 3/4 Inch Combination (Side/Back), (2) 1/2 Inch and 3/4 Inch (Bottom); Power Consumption 3 W
Mechanical Water Heater Time Switch; Minimum ON Time 1 Hr; Minimum OFF Time 1 Hr; Switch Type DPST; Current Rating 40 Ampere; Voltage Rating 208 to 250 VAC at 60 Hz; Power Rating 10000 W (Resistive); Reserve Power No; Operating Temperature -40 to 130 Deg F; Material Steel; Finish Gray; Size 5-1/8 Inch W x 3-7/16 Inch D x 7-7/8 Inch H; Application Residential, Institutional, Industrial, Commercial, Military Facilities, Schools; Approval UL (Canada and US), CSA (Canada and US); Knockout Size 1/2 Inch and 3/4 Inch Combination (Side/Back), (2) 1/2 Inch and 3/4 Inch (Bottom); Power Consumption 3 W
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: WH40
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Mechanical Water Heater Time Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: WH40
- Supplies Depot Part Number: 28911
