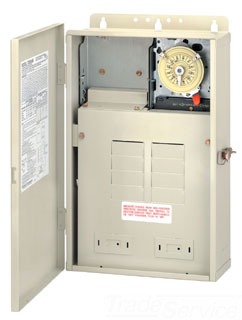

Can be Used as a Load Center Only or Add Mechanisms or Wiring Devices for Complete Control Systems; Comes with an 8 or 16 Circuit Breaker Base, Equipment Grounding Bar, Optional Mechanical Time Switch; Reduces Installation Costs; Eliminates the Need for Additional Service Panels; Accepts any Combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series Mechanisms; Load Center Dead Front has Two Knockouts for Switches or GFCIs; Wiring Devices May be Installed in these Load Centers with the Use of Standoffs; 1 Year Limited Warranty
2 HP (24 FLA) @ 120V, 5 HP (28 FLA) @ 240V, 1000 VA (Pilot Duty) @ 120/208/240V
Knockout Size (4) 1/2 to 3/4 Inch, (3) 3/4 to 1 Inch (Bottom), (1) 3/4 to 1 Inch (Left), (5) 1/2 to 3/4 Inch (Back), (1) 1-3/4 Inch x 2-3/4 Inch (Right)
Mechanical Control Power Center; Switch Type DPST; Current Rating 30 Ampere at 120/208/240 VAC (Resistive/Inductive/Tungsten), 100 Ampere at 120/240/208 VAC 60 Hz (Loadcenter) 1-Phase; Voltage Rating 240 VAC at 60 Hz; Power Rating 2 HP (24 FLA) at 120 VAC, 5 HP (28 FLA) at 240 VAC, 1000 VA (Pilot Duty) at 120/208/240 VAC; Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 3R; Size 10-7/8 Inch W x 4-3/4 Inch D x 16-7/8 Inch H; Application Pumps, Lighting; Approval CSA (Canada and US); Knockout Size (4) 1/2 to 3/4 Inch, (3) 3/4 to 1 Inch (Bottom), (1) 3/4 to 1 Inch (Left), (5) 1/2 to 3/4 Inch (Back), (1) 1-3/4 Inch x 2-3/4 Inch (Right)
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: T30004R
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Mechanical Control Power Center
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: T30004R
- Supplies Depot Part Number: 48319
