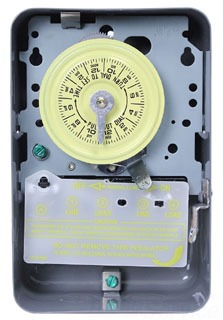

Supplies Depot: Intermatic T103 24-Hour Timer DPST

Description

This Intermatic T103 24-Hour Timer DPST is a genuine OEM product. It is brand new in the original Intermatic factory packaging. Please see below for important warranty information.

The T100 Series Mechanical Time Switch has Proven it Can Stand the Test of Time; Manual Override; One on and One OFF Tripper Included 5-1/8 inch x 3-7/16 inch x 7-7/8 inch, 125 VAC at 60 Hz, 40 A, 2 HP, DPST, Gray, Steel, 24 Hr, Electromechanical Time Switch Includes On/Off Tripper; Power Consumption 3 W; Wire Size 14 to 8 AWG; Knockout Dimension (1) 1/2 Inch and (1) 3/4 Inch (Side/Back), (2) 1/2 Inch and (2) 3/4 Inch (Back)

Electromechanical Time Switch; Type 24 Hr; Maximum Number of Operations 1 to 12 per Day; Minimum ON Time 1 Hr; Minimum OFF Time 1 Hr; Switch Type DPST; Current Rating 40 Ampere at 120 to 480 VAC (Resistive), 40 Ampere at 120 to 277 VAC (Tungsten/Inductive); Voltage Rating 125 VAC at 60 Hz; Power Rating 2 HP at 120 VAC (24 FLA); Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 1; Material Steel; Finish Gray; Mounting Enclosure; Size 5 Inch W x 3 Inch D x 7-3/4 Inch H; Application Indoor, Post Lantern, Sign, Pool Heater, Filter, Hydro chlorinator, Air Conditioning, Blower, Electric Fence, Pump, Heating/Ventilating System, Music and Signal System, Fan, Poultry Fogger, Conveyer; Approval UL (Canada and US), CSA (Canada and US); Includes On/Off Tripper; Power Consumption 3 W; Wire Size 14 to 8 AWG; Knockout Dimension (1) 1/2 Inch and (1) 3/4 Inch (Side/Back), (2) 1/2 Inch and (2) 3/4 Inch (Back)

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Specs

Condition: Brand New
Brand: Intermatic
Item ID: T103
Warranty: 1 Year Limited
Manufacturer: Intermatic
Product Type: Electromechanical Time Switch

Document Downloads

Additional Part Number Information:

Equivalent Part Number: T103
Supplies Depot Part Number: 28898
