Auto Daylight Saving Time Adjustment; Astronomic Feature Provides Sunset on and Sunrise off Settings or Combine Astronomic Features with Specific Timed On/Off Programming; Low Battery Indicator; Continuously Displays Time of Day, Mode and Load Status; Replaces Single-Pole or 3-Way Switches in a Variety of Applications; Random Setting Feature Available to Avoid Predictable Time Controlled Look; User Program Selections are Stored in Non-Volatile Memory; Controls All Voltage/Frequencies with No Adjustments Required; 1 Year Limited Warranty

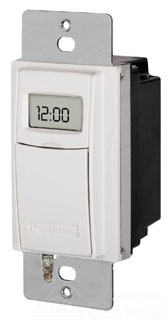

1.75 inch x 1.46 inch x 2.75 inch, 120 to 277 VAC, 15 A, 2 HP, 1-Pole, 3-Way, White, Programmable, In-Wall Timer Switch
120-277 VAC (Resistive), 120/208-277 VAC (Tungsten/Ballast), 120/240 VAC (Motor), 12/18 VDC (DC Load)
In-Wall Timer Switch; Type Programmable; Voltage Rating 120 to 277 VAC (Resistive), 120/208 to 277 VAC (Tungsten/Ballast), 120/240 VAC (Motor), 12/18 VDC (DC Load); Current Rating 15 Ampere 120 to 277 VAC (Resistive), 4 Ampere at 208 to 277 VAC, 8 Ampere at 120 VAC (Ballast), 6 Ampere at 208 to 277 VAC, 15 Ampere at 120 VAC (Tungsten), 2 Ampere at 28 VDC, 4 Ampere at 12 VDC (DC Load); Power Rating 1 HP at 120 VAC, 2 HP at 240 VAC; Maximum Number of Operations 40 per Week; Operation Type On/Off; Switch Type 1-Pole, 3-Way; Reserve Power Battery; Operating Temperature 32 to 104 Deg F; Finish White; Mounting Decorator Wall Plate/Standard Wall Box; Size 1.75 Inch W x 1.46 Inch D x 2.75 Inch H; Approval CSA (Canada and US)
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: ST01
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: In-Wall Timer Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: ST01
- Supplies Depot Part Number: 121296
