Email UsDescription
The LC4500 Series Photo Controls Feature Low Cost Locking-Type Mounting and Thermal-Type Controls for Street Lighting and Other Applications Requiring a Twist and Lock Type Plug Connection; Thermal-Type Photo Controls Provide Dusk-To-Dawn Lighting Control and a Delay Action, Which Eliminates Loads Switching Off Due to Car Headlights and Lightning; The Thermal-Type Controls Feature a Cadmium Sulfide Photocell and Polypropylene Case to Seal Out Moisture; The Design Utilizes a Dual Temperature Compensating Bi-Metal and Composite Resistor for Reliable Long Life Operation Over Ambient Temperature Extremes; Color Translucent with Color Coded Band for Voltage Identification; 2 Year Limited Warranty

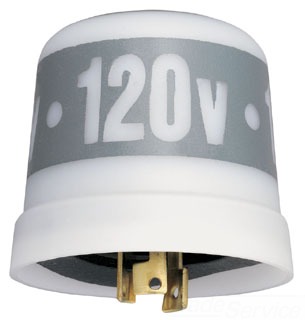

120/277VAC 1000/2300VA Polypropylene Thermal Turn Lock Photocontrol
Material Bi-Metal (Switch), Cadmium Sulfide (Photocell)
Turn Lock Photocontrol; Type Thermal; Voltage Rating 120 to 277 VAC; Tungsten Load Rating 1800 to 4155 W; Ballast Load Rating 1000 to 2300 VA; Response Feature Delay Off; Surge Arrester Type Open Type Spark Gap; Surge Arrester Rating 2400 V; Turn ON Light Level 0.5 FC; Turn OFF Light Level 15 FC; Temperature Rating -20 to 104 Deg F; Mounting Twist Lock; Enclosure Material Polypropylene; Size 3 Inch Dia x 2-3/4 Inch H; Application Street Lighting; Approval UL, CSA (Canada and US); Material Bi-Metal (Switch), Cadmium Sulfide (Photocell)
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: LC4536C
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Turn Lock Photocontrol
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: LC4536C
- Supplies Depot Part Number: 55729
