Email UsDescription

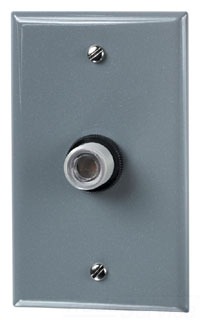

Cadmium Sulfide Photocell; Sonic-Welded Polycarbonate Housing and Lens to Seal Out Moisture; Delay Action Eliminates Load Switching off Due to Car Head Lights and Lightning; 9 Inch Leads; K4321 Includes a Weatherproof Wall Plate with a Neoprene Gasket; Most Models Equipped with a 5/8 inch to 18 TPI Threaded Side Mounting, Locking Nut and Washer Gasket; 5 Year Warranty
120 VAC 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, 18 AWG 9 inch Wire Lead Terminal, Sonic Welded Polycarbonate, Weatherproof, In-Wall Style, Thermal Photocontrol
Wall Plate Size 2-3/4 Inch W x 4-1/2 Inch H; Tungsten Current Rating 15 Ampere; Ballast Current Rating 8.3 Ampere; Material Bi-Metal (Switch), Cadmium Sulfide (Photocell); Color Gray
Flush Mount Photocontrol; Type Thermal; Voltage Rating 120 V; Tungsten Load Rating 1800 W; Ballast Load Rating 1000 VA; Turn ON Light Level 1 to 5 FC; Turn OFF Light Level 3 to 15 FC; Terminal Type 18 AWG 9 Inch Wire Lead; Wall Plate Type Weatherproof; Temperature Rating -40 to 158 Deg F; Mounting 3/8 Inch-18 NPSM x 3/4 Inch L Stem; Enclosure Material Sonic Welded Polycarbonate; Size 15/16 Inch W x 13/16 Inch D x 1-13/16 Inch H; Application Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting; Approval UL, CSA (Canada and US); Wall Plate Size 2-3/4 Inch W x 4-1/2 Inch H; Tungsten Current Rating 15 Ampere; Ballast Current Rating 8.3 Ampere; Material Bi-Metal (Switch), Cadmium Sulfide (Photocell); Color Gray
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: K4321C
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Flush Mount Photocontrol
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: K4321C
- Supplies Depot Part Number: 28877
