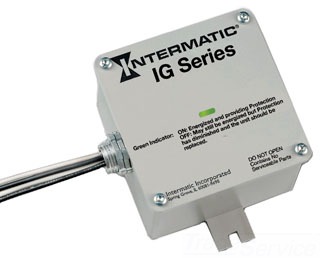

Supplies Depot: Intermatic IG1200RC3 Surge Protector

Description

This Intermatic IG1200RC3 Surge Protector is a genuine OEM product. It is brand new in the original Intermatic factory packaging. Please see below for important warranty information.

The IG Series Surge Protective Devices (SPD) are Designed for a Variety of Applications; A Green LED Indicator Provides Status of Protection; Trusted, State-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) Surge Protection Technology Eliminates the Potentially Hazardous Failure Modes that are Commonly Associated with Standard MOV Technology; Three or Six Modes of Surge Protection Depending on Model; 3 Year Limited Warranty

120/240 VAC 50/60 Hz 1-Phase, 20 kA, NEMA 3R, Molded Polycarbonate, 30 inch 12 AWG Lead Wire, Type 1, Type 2, Surge Protective Device

Short Circuit Current Rating 50 Kiloampere; Housing Material Plastic; Nominal Discharge Current Rating 20 Kiloampere The IG1200 Surge Protective Device (SPD) is designed for a variety of applications. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure Mode that are commonly associated with standard MOV technology.

Surge Protective Device; Voltage Rating 120/240 VAC; Circuit Configuration 1-Phase; Modes of Protection L1-N, L2-N, L1-L2; Connection Type 30 Inch 12 AWG Lead Wire; Operating Temperature -31 to 185 Deg F; Enclosure NEMA 3R; Size 4.18 Inch W x 3.33 Inch D x 5.65 Inch H; Mounting 1/2 Inch Threaded Nipple; Application Analog Phone Line, Modem, DSL, Cable TV, Cable Internet, Satellite TV, Indoor, Outdoor; Approval UL 1449, CSA (Canada and US); Used On Service Entrances and Utility Meter Cabinet; Short Circuit Current Rating 50 Kiloampere; Housing Material Plastic; Nominal Discharge Current Rating 20 Kiloampere

Specs

Condition: Brand New
Brand: Intermatic
Item ID: IG1200RC3
Warranty: 1 Year Limited
Manufacturer: Intermatic
Product Type: Surge Protective Device

Document Downloads

Additional Part Number Information:

Equivalent Part Number: IG1200RC3
Supplies Depot Part Number: 473137
