The FD Series Decorator Auto-Off Timers are Designed to Replace any Standard Wall Switch Single or Multi-Gang; This Series of Energy-Efficient Mechanical Timers Do Not Require Electricity to Operate; Hold Feature Enables User to Override the Automatic Shut-Off Function; Supplied Time Dial Plates are Designed to Fit Either Toggle (FF) or Decorator Style (FD) Switch Plates; Single or Multi Gang with No Field Modifications Required; Time Saving up Front Terminal Connection with Teeter-Type Terminals; Press-on Knob Design Ensures Quick and Easy Installation; CFL Compatible; 1 Year Limited Warranty

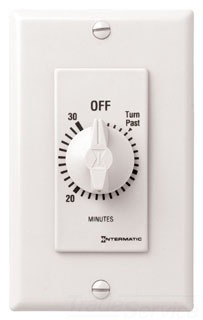

125/250/277 VAC 50/60 Hz, 30 Min, SPST, White, Decorator, Spring Wound Countdown Timer without Hold Operator
Used with Decorator and Toggle Type Switch Plates The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.
Spring Wound Auto-Off Timer; Type Decorator; Time Cycle 30 Min; Operation Type Without Hold; Switch Type SPST; Contact Current Rating 20 Ampere at 125 VAC 50/60 Hz (Resistive), 10 Ampere at 250/277 VAC 50/60 Hz (Resistive), 7 Ampere at 125 VAC (Tungsten); Contact Power Rating 1 HP at 125 VAC 50/60 Hz, 2 HP at 250 VAC 50/60 Hz; Operating Temperature -32 to 104 Deg F; Color White; Mounting Wall; Size 1-3/4 Inch W x 1-1/4 Inch D x 4-1/8 Inch H; Application Fan, Lighting, Motor, Heater; Approval UL, CSA (Canada and US); RoHS Compliant; Used with Decorator and Toggle Type Switch Plates
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: FD30MWC
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Spring Wound Auto-Off Timer
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FD30MWC
- Supplies Depot Part Number: 67672
