Email UsDescription
ROHS Compliant; Designed to Replace any Standard Wall Switch-Single or Multi-Gang; This Series of Energy-Efficient Mechanical Timers do not Require Electricity to Operate; They Automatically Limit the On Times for Fans, Lighting, Motors, Heaters, Other Energy Consuming Loads; Hold Feature Enables User to Override the Automatic Shut-Off Function; Supplied Time Dial Plates are Designed to Fit Either Toggle or Decorator Style Switch Plates; Single or Multi-Gang with no Field Modifications Required; Time Saving up Front Terminal Connection with Teeter Type Terminals; Press on Knob Design Ensures Quick and Easy Installation; 1 Year Warranty Limited
ROHS Compliant

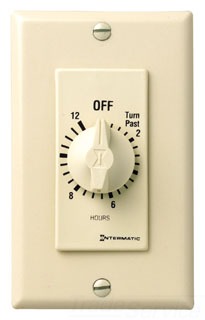

Spring Wound Auto Off Timer; Type Decorator; Time Cycle 12 Hr; Operation Type Without Hold; Switch Type SPST; Contact Current Rating 20 Ampere at 125 VAC 50/60 Hz, 10 Ampere at 250/277 VAC 50/60 Hz (Resistive), 7 Ampere at 125 VAC 50/60 Hz (Tungsten); Contact Power Rating 1 HP at 125 VAC 50/60 Hz, 2 HP at 250 VAC 50/60 Hz; Operating Temperature 32 to 104 Deg F; Color Ivory; Mounting Wall; Size 1-3/4 Inch W x 1-1/4 Inch D x 4-1/8 Inch H; Application Fan, Lighting, Motor, Heater; Approval UL (Canada and US), CSA (Canada and US); ROHS Compliant
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: FD12HC
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Spring Wound Auto Off Timer
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FD12HC
- Supplies Depot Part Number: 64125
