Power Surges are the Silent Killer for Home Appliances and HVAC Equipment; A Green LED Indicator Provides Status of Protection; Trusted, State-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) Technology Eliminates the Potentially Hazardous Failure Modes that are Commonly Associated with Standard MOV Technology; 3 Year Warranty

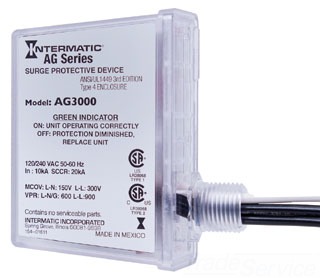

120/240 VAC 50/60 Hz, 1-Split Phase, 20 kA, 18 inch Lead Wire, HVAC Surge Protective Device
Housing Material Molded Polycarbonate; Short Circuit Current Rating 20 Kiloampere; Nominal Discharge Current Rating 10 Kiloampere Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology
Surge Protective Device Arrester; Voltage Rating 120/240 VAC; Frequency Rating 50/60 Hz; Circuit Configuration 1-Phase 2-Wire with Ground; Modes of Protection L1-N, L2-N, L1-L2; Connection Type 18 Inch 10 AWG Lead Wire; Operating Temperature -40 to 158 Deg F; Enclosure NEMA 4X; Size 1-5/8 Inch W x 4-3/16 Inch D x 3-7/8 Inch H; Mounting 1/2 Inch-20 TPI Nipple; Application Air Handlers, Furnace, Central Air Conditioner, Mini-Splits, Hydronic Heating, Heat Pumps; Approval UL (Canada and US); Used On HVAC Equipment; Housing Material Molded Polycarbonate; Short Circuit Current Rating 20 Kiloampere; Nominal Discharge Current Rating 10 Kiloampere
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: AG3000
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Surge Protective Device Arrester
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: AG3000
- Supplies Depot Part Number: 502532
