The AG Series Surge Protective Devices (SPD) are Designed for a Variety of Applications; Trusted, State-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) Surge Protection Technology Eliminates the Potentially Hazardous Failure Modes that are Commonly Associated with Standard MOV Technology; A Green LED Indicator Provides Status of Protection; Type 1 Applications Include Outdoor Installations Before Service Entrances and Utility Meter Cabinets; Type 2 Applications Include Installations After Service Entrances; Outdoor Applications Include Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls, Motors; 1 Year Limited Warranty

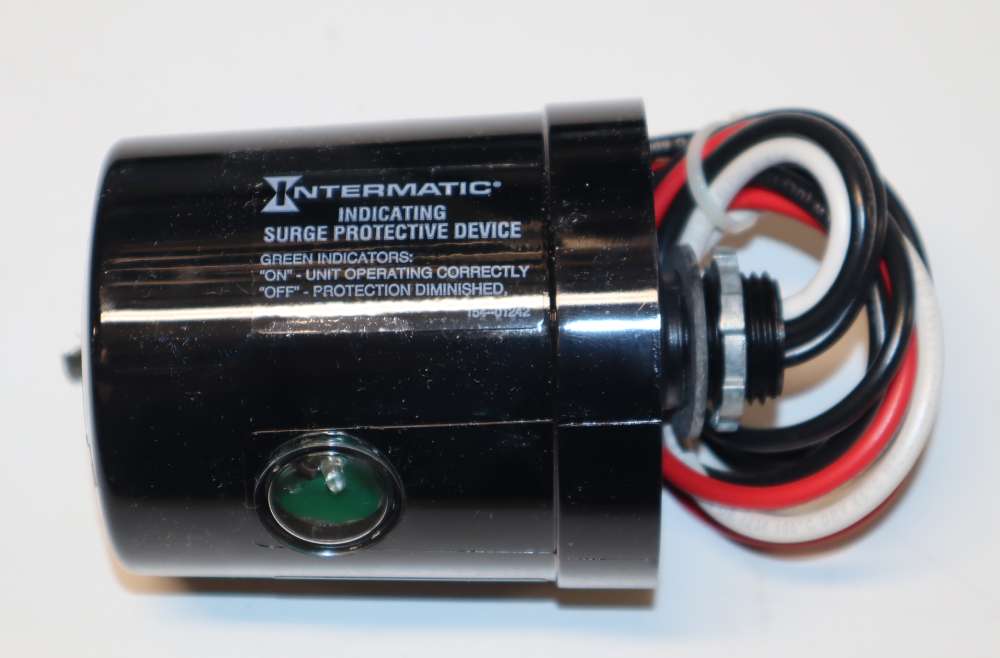

106.4 MM, 120/208/240 VAC, 20 kA, 50/60 Hz, 3-Phase, Surge Protective Device
Short Circuit Current Rating 50 Kiloampere; Housing Material Molded Polycarbonate; Nominal Discharge Current Rating 20 Kiloampere
Surge Protective Device Arrester; Voltage Rating 120/208/240 VAC; Circuit Configuration 3-Phase Delta 3-Pole 4-Wire with Ground; Modes of Protection L1-N, L2-N, L3-N, L1-L2, L1-L3, L2-L3; Connection Type 18 Inch 12 AWG Lead Wire; Operating Temperature -31 to 185 Deg F; Enclosure NEMA 4; Size 3 Inch Dia x 4-3/16 Inch H; Mounting 1/2 Inch-20 TPI Nipple; Application Light Commercial, Outdoor Applications, 3-Phase Rooftop HVAC Units; Approval UL, CSA (Canada and US); Used On Service Entrances and Utility Meter Cabinet; Short Circuit Current Rating 50 Kiloampere; Housing Material Molded Polycarbonate; Nominal Discharge Current Rating 20 Kiloampere
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: AG2403C3
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Surge Protective Device Arrester
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: AG2403C3
- Supplies Depot Part Number: 273750
