Email UsDescription

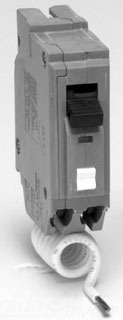

120/240 VAC, 20 A, 10 kA, 1-Pole, Plug-In Mount, Molded Case, Fixed Thermal Magnetic, Combination, Arc Fault Circuit Breaker
Trip Type Non-Interchangeable; Frame Type THQL; Trip Function LI
Plug-In Circuit Breaker; Type Fixed Thermal Magnetic; Poles 1; Voltage Rating 120/240 VAC; Current Rating 20 Ampere; Interrupting Rating 10 Kiloampere; Wire Size 14 to 10 AWG (Copper/Aluminum); Construction Feature Arc Fault Circuit Interrupter; Mounting 1 Inch Plug-In; Used On AL/ALC Series Panelboard, Residential Loadcenter; Size 1 Inch W x 2-3/8 Inch D x 3-9/32 Inch H; Approval UL; Trip Type Non-Interchangeable; Frame Type THQL; Trip Function LI
This is an arc fault breaker. Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. AF2 is called Combination and meets 2005 NEC and 2008 NEC.
Specs
- Condition: Brand New
- Brand: GE / General Electric
- Item ID: THQL1120AF2
- Manufacturer: GE / General Electric
- Product Type: Plug-In Circuit Breaker
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: THQL1120AF2
- Supplies Depot Part Number: 319917
