Email UsDescription

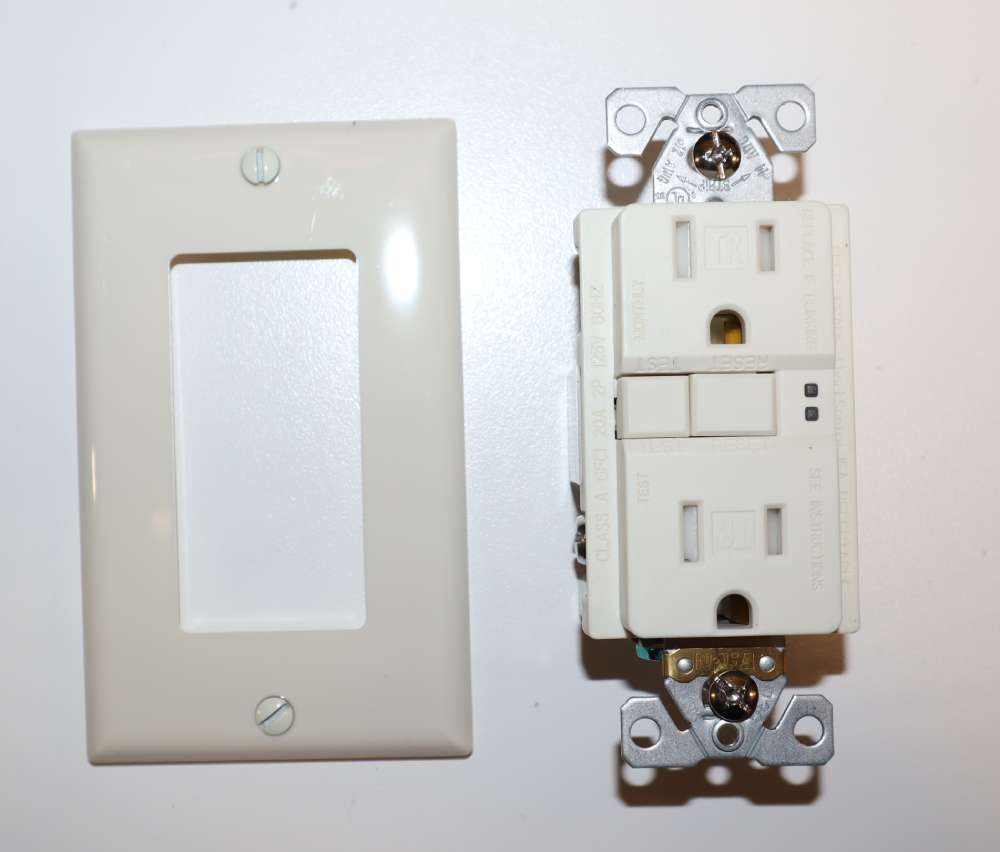

Meets and Exceeds 10 Kiloampere Short Circuit Testing; Performs Periodic Self Tests to Ensure Integrity of GFCI Protection if No Ground-Fault Protection is Detected, the Device Will Trip, Will Not Reset and the Status Indicator Light Will Glow Amber; Tapered Back Wire Openings Handle Multiple Wire Sizes and Types for Applications Upto 10 AWG Solid or Stranded Wire; When Downstream Receptacles are Wired from Load Side, a 20 Ampere Feed-Through Rating Offers Full Protection; Test and Reset Buttons are Color Matched to Provide Superior Aesthetics; Longer, Wider Bridge Strap Provides 40 Percent More Contact area with Wallboard, Virtually Eliminating Floating Installations; Exclusive Built-In Wire Stripper Provides Fast Stripping of Wire without Tools; Line-Load Miswiring Protection GFCI Will Not Provide Power Downstream When Wired Incorrectly; Tri-Combo Head Terminal and Mounting Screws
Constructional Feature Tamper Resistant; Wire Size 14 to 10 AWG; Temperature Rating -35 to 66 Deg C; Flammability Rating UL 94 V-2
GFCI Receptacle; Type Duplex; Configuration 5-15R; Voltage Rating 125 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Material Polypropylene (Top Housing), PVC (Bottom Housing); Color Light Almond; Wiring Back, Side; Grade Specification; Approval UL (Canada and US), UL 498, UL 943, CSA, NOM 426; Constructional Feature Tamper Resistant; Wire Size 14 to 10 AWG; Temperature Rating -35 to 66 Deg C; Flammability Rating UL 94 V-2
Specs
- Condition: Brand New
- Brand: Eagle
- Item ID: TRSGF15LA
- Manufacturer: Eagle
- Product Type: GFCI Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: TRSGF15LA
- Supplies Depot Part Number: 1114703
